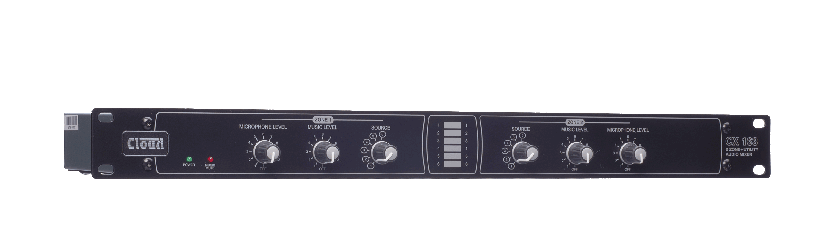

The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.
| Manuals | CX163 Manual_EN_v1.2.pdf | Open |
| Datasheet | CX163 Datasheet_DE_v2.0.pdf | Open |
| Datasheet | CX163 Datasheet_EN_v1.2.pdf | Open |
| Datasheet | CX163 Datasheet_ES_v2.0.pdf | Open |
| Jumper Settings | CX163 Jumper Settings (EN).pdf | Open |
| Images | CX163 Legacy Brochure.pdf | Open |

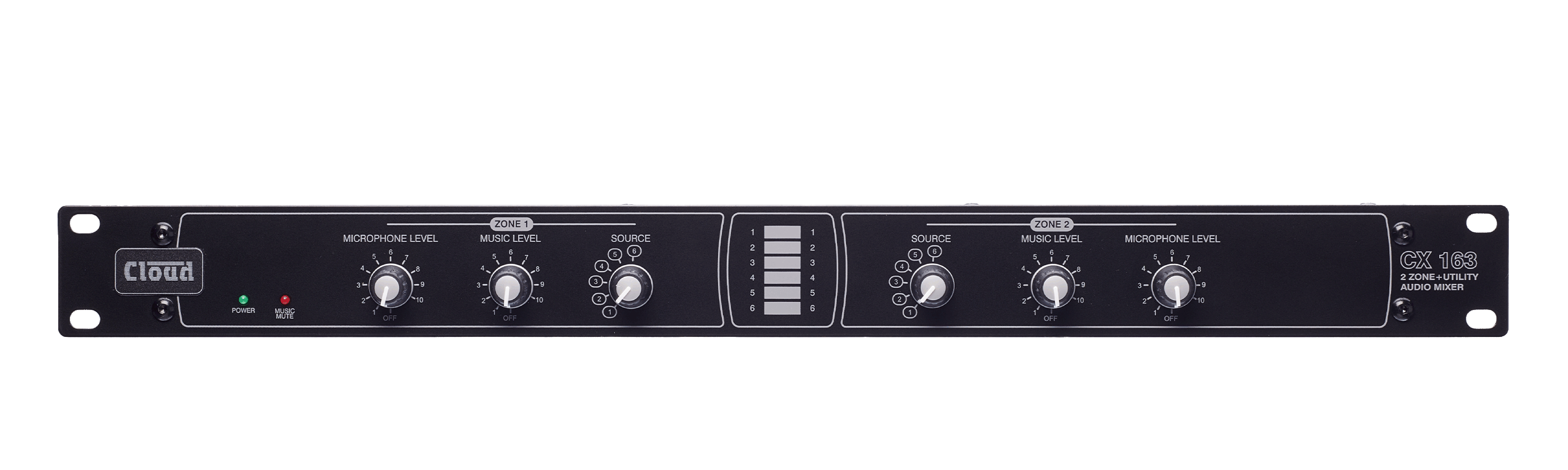

| Images | CX163_Front_Image.jpg | Open |

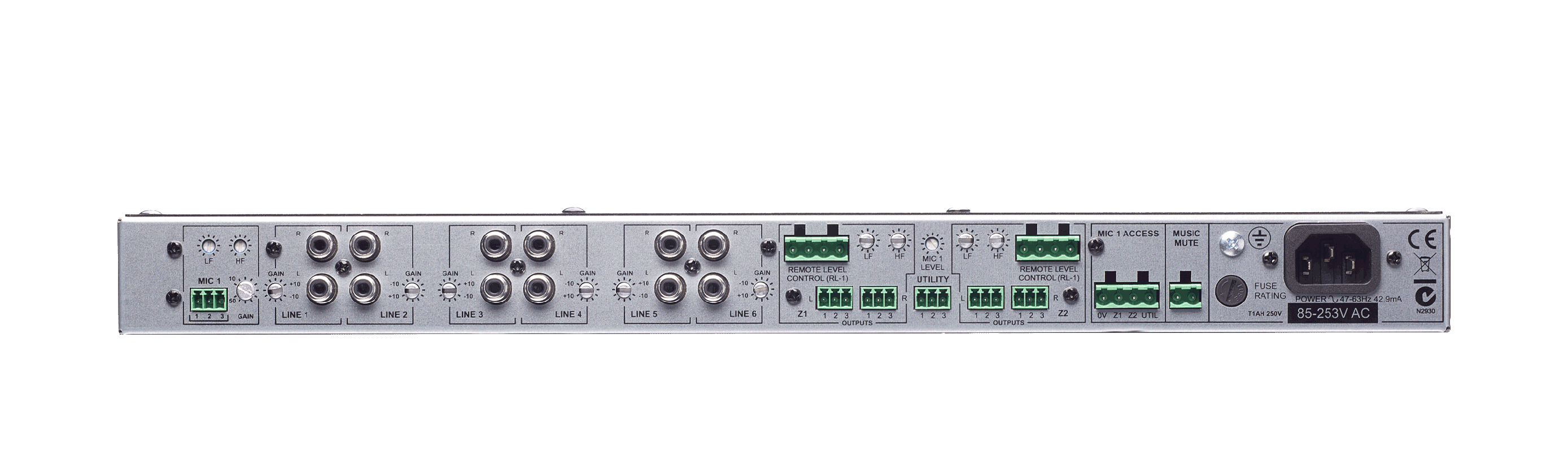

| Images | CX163_Rear_Image.jpg | Open |
| Application Examples | APP NO. 006 - 2-Zone Store, CX163_CXA450_PM4.pdf | Open |
| Application Examples | APP NO. 007 - 2-Zone Store with Zone Message Announcer, CX163_CXA450_PMSA.pdf | Open |
| Application Examples | APP NO. 035 - Two Audio Zones with Paging_CX163_CXV225.pdf | Open |
